Why Choose Us as Your Titanium Buttweld Pipe Fittings Supplier?
Selecting the right Titanium Buttweld Pipe Fittings supplier is essential for maintaining
the integrity and reliability of industrial piping systems. CEBEX STEEL INDIA has earned
the trust of EPC contractors, procurement companies, project consultants, and industrial
buyers across India and global markets due to our strong commitment to quality, technical
expertise, and customer-focused manufacturing solutions. We are an ISO 9001:2015 certified
company manufacturing titanium fittings in accordance with ASTM, ASME, DIN, EN, ANSI,
and MSS standards.
Our in-house inspection and testing facility performs comprehensive quality checks
including PMI testing, hydrostatic testing, radiographic examination, ultrasonic testing,
hardness testing, and dimensional verification. Every Titanium Buttweld Pipe Fitting
supplied by us is fully traceable from raw material procurement to final dispatch and
is accompanied by complete documentation including EN 10204 3.1/3.2 Mill Test
Certificates, NDT reports, and raw material certificates. Our export division ensures
secure packaging, fast delivery schedules, and smooth international logistics support
for projects across Africa, the Middle East, Southeast Asia, Europe, and other global
markets.

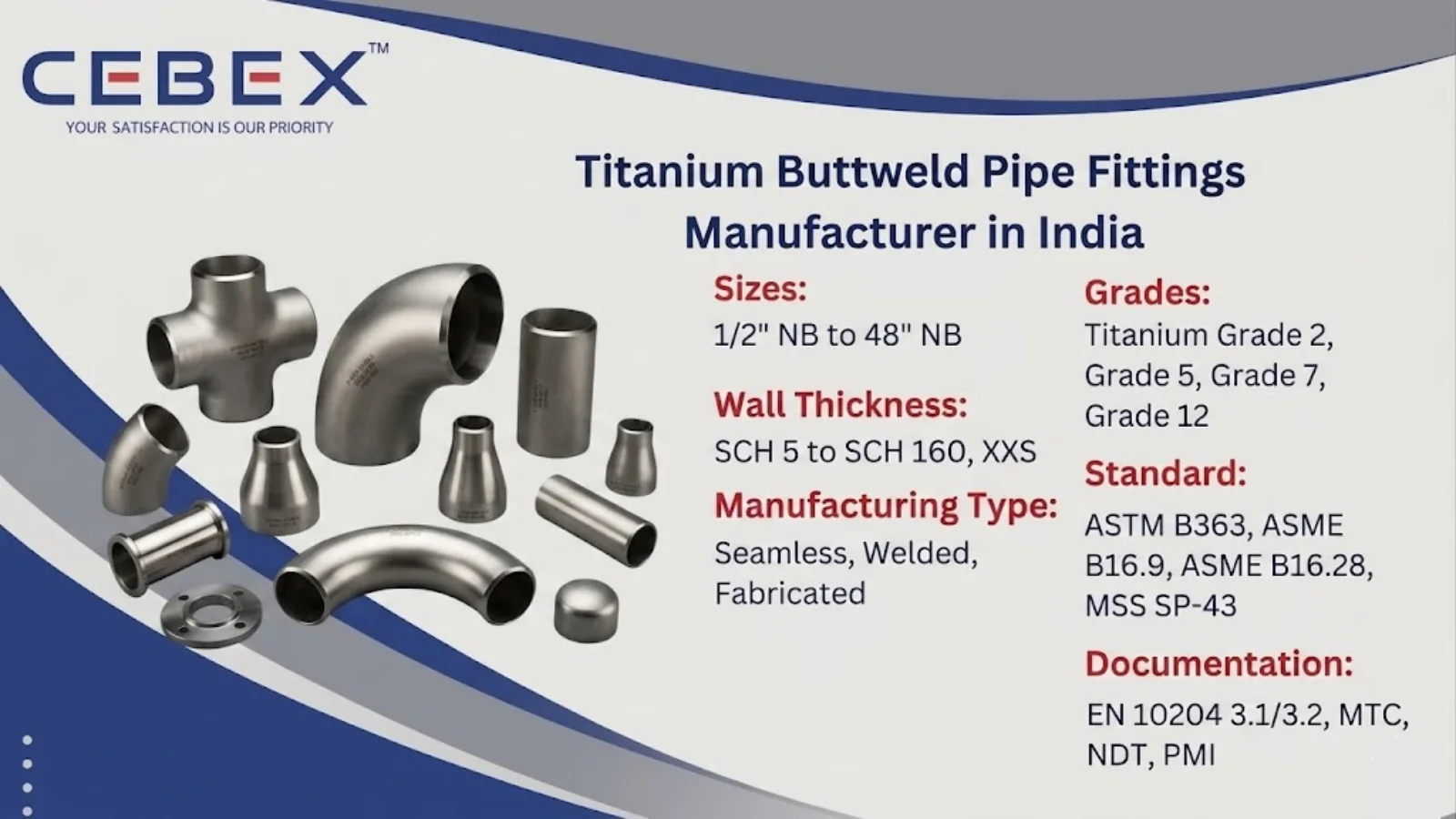

Product Overview & Key Features
Our Titanium Buttweld Pipe Fittings are manufactured using high-quality titanium raw
materials sourced from approved mills and processed under strict quality control systems.
Titanium fittings are widely preferred for industrial applications requiring superior
corrosion resistance, lightweight construction, excellent strength-to-weight ratio, and
long-term operational reliability.
The following table summarizes the technical specifications and features of our Titanium
Buttweld Pipe Fittings:
| Feature |
Specification / Detail |
| Standards |
ASTM B363, ASME B16.9, ASME B16.28, MSS SP-43, ANSI B16.25 |
| Grades |
Grade 2, Grade 5, Grade 7, Grade 12, WP1, WP2, WP11, WP12 |
| Types |
Elbows, Tees, Reducers, Stub Ends, Caps, Bends, Crosses |
| Size Range |
½" NB to 48" NB |
| Wall Thickness |
SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, XXS |
| Manufacturing Type |
Seamless, Welded, Fabricated |
| Manufacturing Method |
Cold Formed, Hot Formed, Forged, Machined |
| Surface Finish |
Pickled, Polished, Sand Blasted, Shot Blasted |
| Dimensions Standard |
ASME, ANSI, DIN, EN, ISO |
| Documentation |
EN 10204 3.1/3.2, MTC, NDT, PMI, Hydro Test |
Types of Titanium Buttweld Pipe Fittings We Manufacture
Our product portfolio includes a comprehensive range of Titanium Buttweld Pipe Fittings
designed for industrial piping systems operating under highly corrosive and elevated
temperature conditions. We manufacture titanium elbows in 45°, 90°, and 180°
configurations including both long radius and short radius elbows.
Our range also includes equal tees, reducing tees, concentric reducers, eccentric
reducers, pipe caps, stub ends, pipe bends, crosses, collars, and custom fabricated
titanium fittings manufactured according to client drawings and project specifications.
These fittings are available in seamless, welded, and fabricated construction depending
on the application requirements and pressure conditions.
Grades, Materials & International Standards
We manufacture Titanium Buttweld Pipe Fittings in multiple commercially pure titanium
and titanium alloy grades suitable for highly corrosive and high-temperature
applications. All raw materials are procured from approved mills with complete
traceability, heat number identification, and mill certification documentation.
| Titanium Grade |
Typical Applications |
Standards |
| Titanium Grade 2 |
Chemical processing, marine, desalination |
ASTM B363 WP2 |
| Titanium Grade 5 (Ti-6Al-4V) |
Aerospace, offshore, high-strength systems |
ASTM B363 |
| Titanium Grade 7 |
Acid handling and chemical plants |
ASTM B363 |
| Titanium Grade 12 |
Heat exchangers and process piping |
ASTM B363 |
| ASTM B363 WP1 |
General titanium piping systems |
ASTM B363 |
| ASTM B363 WP11/WP12 |
High-performance industrial applications |
ASTM B363 |
Chemical Composition & Mechanical Properties
Every Titanium Buttweld Pipe Fitting undergoes rigorous testing and inspection to ensure
full compliance with international standards. Our laboratory performs chemical analysis,
tensile testing, flattening tests, hardness testing, PMI testing, and non-destructive
examinations.
Chemical Composition – Titanium Grade 2 (ASTM B363 WP2)
| Element |
Composition (%) |
| Nitrogen (N) | 0.03 max |
| Carbon (C) | 0.08 max |
| Hydrogen (H) | 0.015 max |
| Iron (Fe) | 0.30 max |
| Oxygen (O) | 0.25 max |
| Titanium (Ti) | Balance |
Mechanical Properties – Titanium Grade 2
| Property |
Value |
| Tensile Strength | 344 MPa min |
| Yield Strength | 275 MPa min |
| Elongation | 20% min |
Equivalent Grades
| Standard |
Grade |
| ASTM | Grade 2 |
| UNS | R50400 |
| DIN / WNR | 3.7035 |
All inspection reports and test certificates are supplied with every shipment to ensure
full transparency and traceability.
Dimensions, Sizes & Weight Chart
We manufacture Titanium Buttweld Pipe Fittings in sizes ranging from ½" NB
to 48" NB with various wall thicknesses and schedules. Our products comply with
ASME B16.9, ASME B16.28, MSS SP-43, DIN, EN 10253, and other international dimensional
standards. Custom dimensions and fabricated titanium fittings are available upon
request.
| Size (NB) |
Center to End (mm) |
Outside Diameter (mm) |
Wall Thickness (mm) |
| ½" | 38 | 21.3 | 2.77 |
| 1" | 51 | 33.4 | 3.38 |
| 2" | 76 | 60.3 | 3.91 |
| 4" | 152 | 114.3 | 6.02 |
| 8" | 305 | 219.1 | 8.18 |
Applications & Industries Served
Our Titanium Buttweld Pipe Fittings are extensively used in industries requiring superior
corrosion resistance, lightweight construction, and exceptional mechanical performance.
In chemical processing industries, titanium fittings are widely used for handling
chlorides, oxidizing acids, and aggressive chemicals. Marine and offshore industries
utilize titanium fittings for seawater systems, offshore structures, and desalination
plants due to their outstanding resistance to seawater corrosion and biofouling.
Titanium pipe fittings are also used in aerospace engineering, petrochemical plants,
heat exchangers, power generation facilities, pulp and paper industries, oil & gas
processing systems, and pharmaceutical manufacturing plants where high-performance
materials are essential for long-term operational reliability.
Exporting Titanium Buttweld Pipe Fittings to Africa
As a trusted Titanium Buttweld Pipe Fittings Manufacturer in India, CEBEX STEEL INDIA
supplies premium-quality titanium fittings to industrial projects throughout Africa.
Our products are widely used in mining operations, offshore oil & gas projects,
desalination plants, marine engineering, chemical processing facilities, and
infrastructure developments across Nigeria, Egypt, Kenya, South Africa, Ethiopia, and
neighboring African regions.
Our export team understands the technical documentation and logistics requirements of
African industrial projects and ensures smooth delivery with complete compliance
support, inspection documentation, and export-standard packaging. To learn more about
our specialized solutions for the continent, visit our
Africa Titanium Buttweld Pipe Fittings Exporter page.
Related Alloy Buttweld Pipe Fittings – Stainless Steel, Duplex, Super Duplex, Nickel Alloy, Inconel, Monel, Hastelloy, Copper Nickel, Carbon Steel, Alloy Steel
In addition to Titanium Buttweld Pipe Fittings, we also manufacture and export
Stainless Steel Buttweld Pipe Fittings,
Duplex Buttweld Pipe Fittings,
Super Duplex Buttweld Pipe Fittings,
Inconel Buttweld Pipe Fittings,
Hastelloy Buttweld Pipe Fittings, and
Monel Buttweld Pipe Fittings.
These high-performance alloy buttweld fittings are engineered for highly corrosive,
high-pressure, and elevated-temperature industrial environments requiring exceptional
strength, corrosion resistance, thermal stability, and long-term operational reliability.
Our technical team provides expert guidance on material selection and specifications to
ensure optimal performance for your critical applications.
Browse our full range:
Why Choose CEBEX STEEL INDIA?
Clients worldwide choose CEBEX STEEL INDIA for our manufacturing expertise, strict
quality assurance systems, competitive pricing, and dependable export services. We
provide technically advanced piping solutions tailored to project specifications and
industrial requirements. Our experienced engineering team assists clients with material
selection, technical support, compliance documentation, and customized manufacturing
solutions for critical industrial applications.
